Product Details
＋

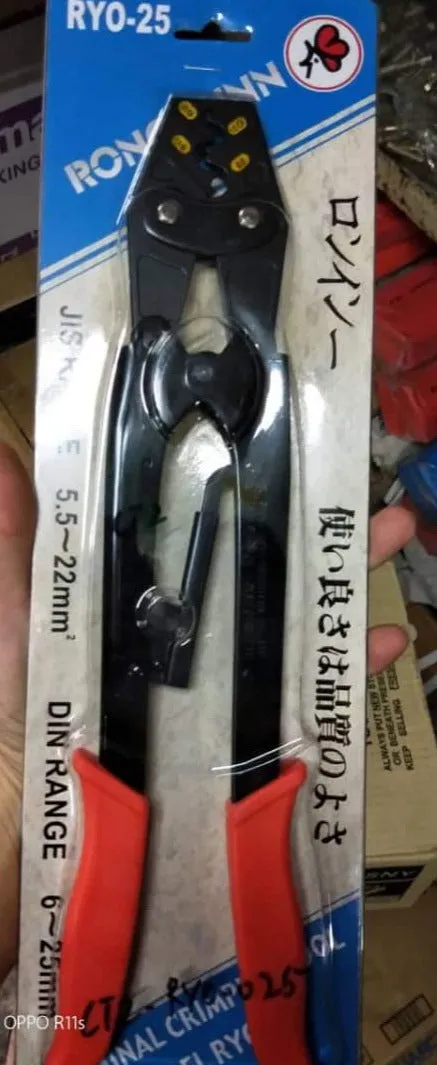

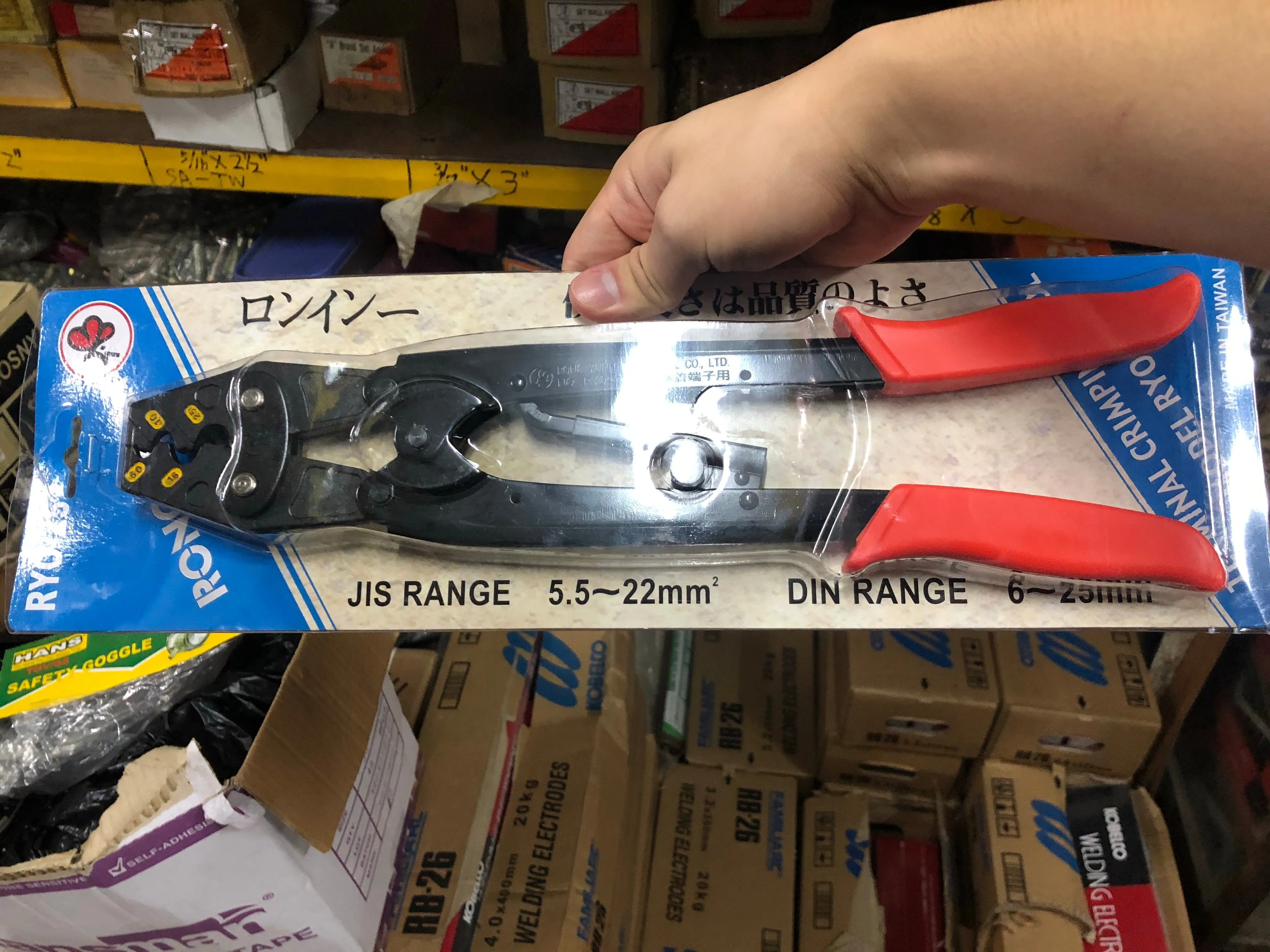

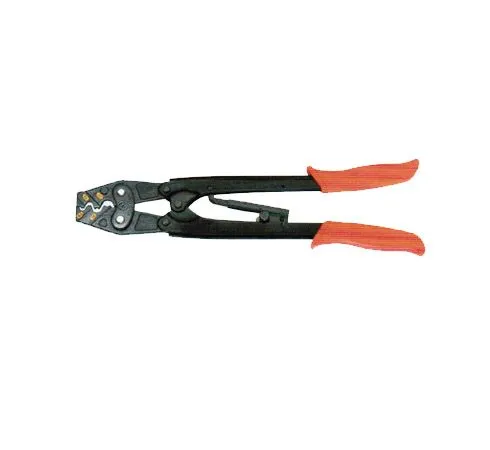

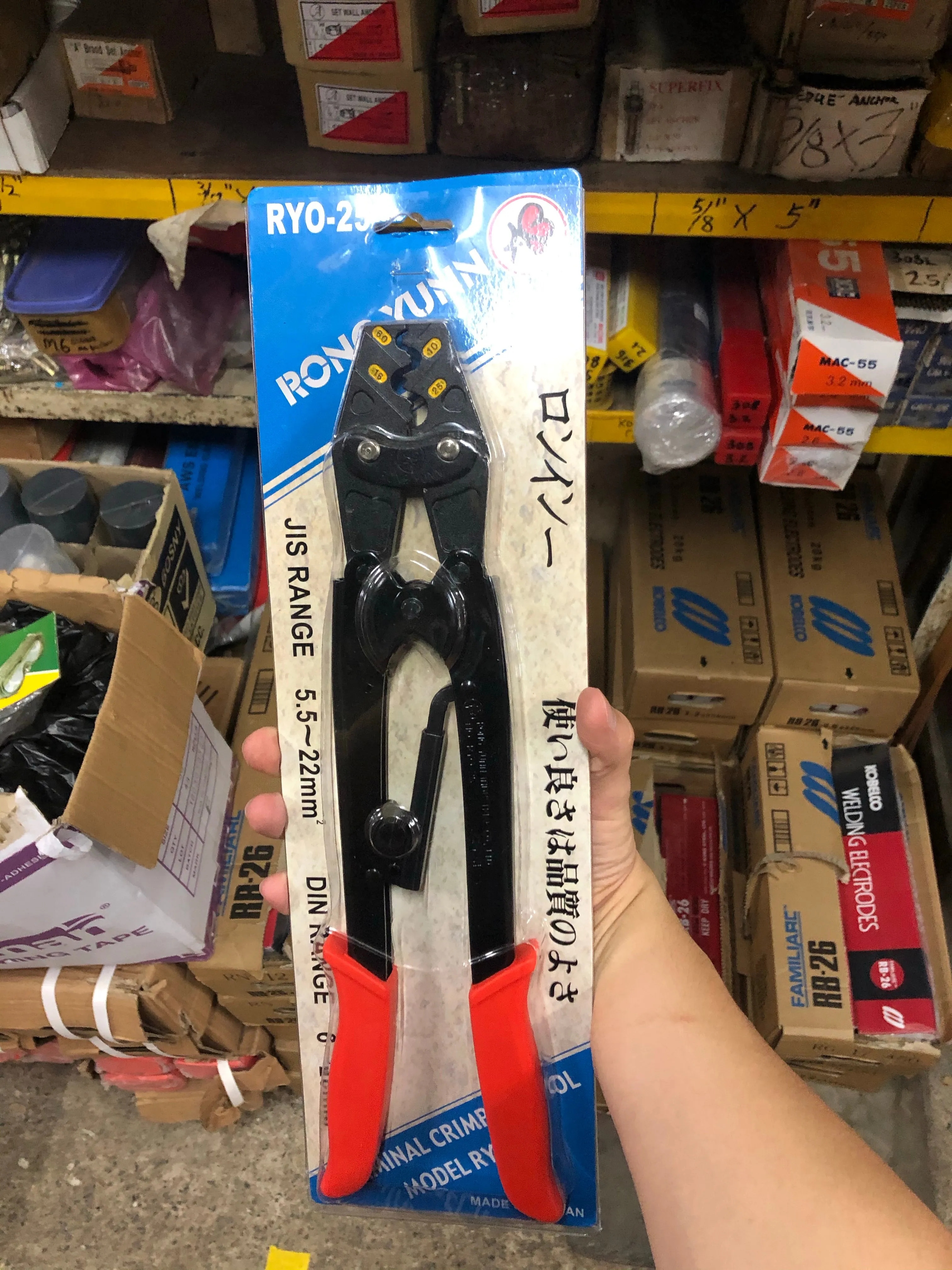

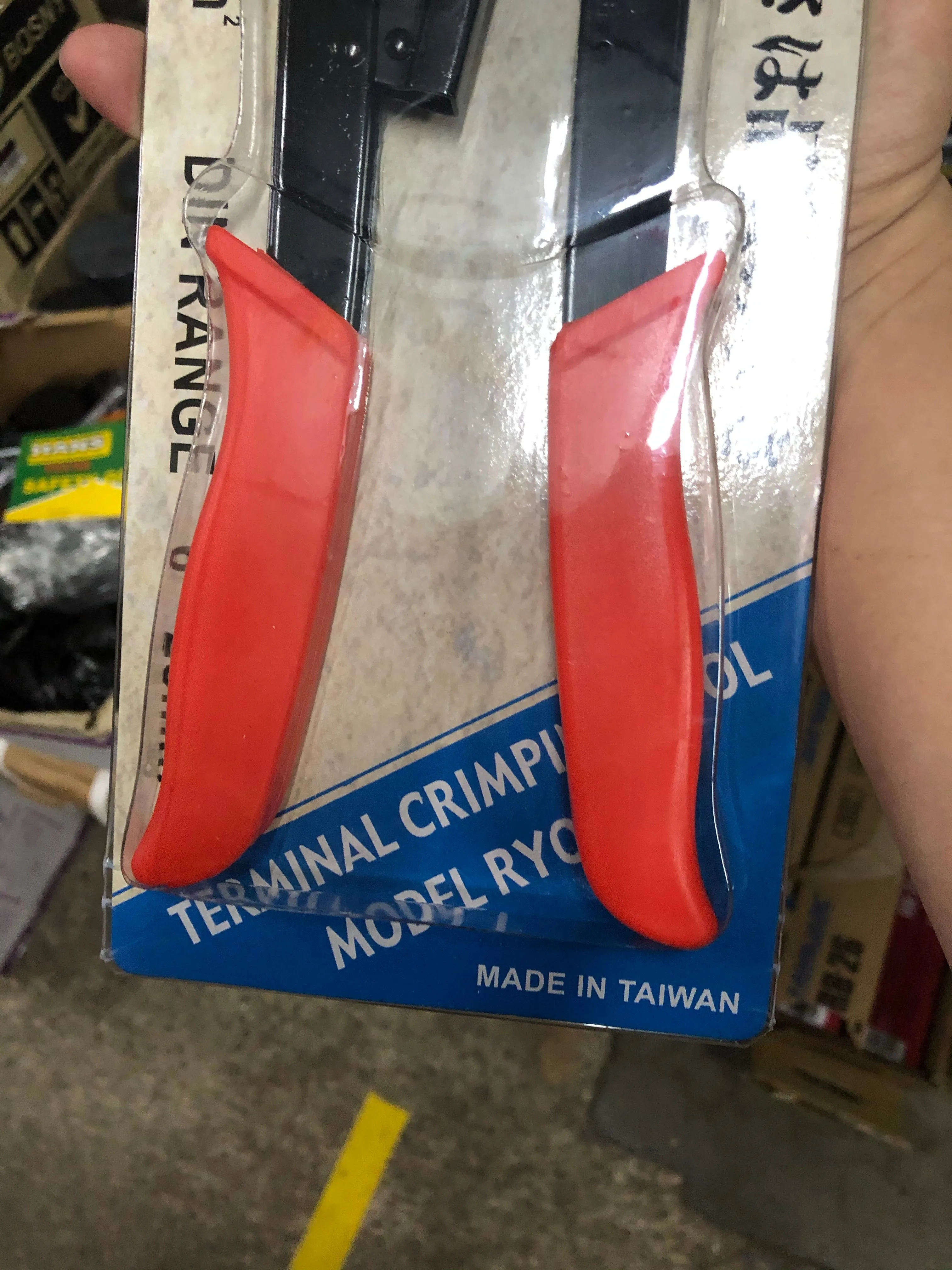

RONG YUAN (ACAS) 25mm2 Terminal Crimping Tool | Model : CT2-RYO-025

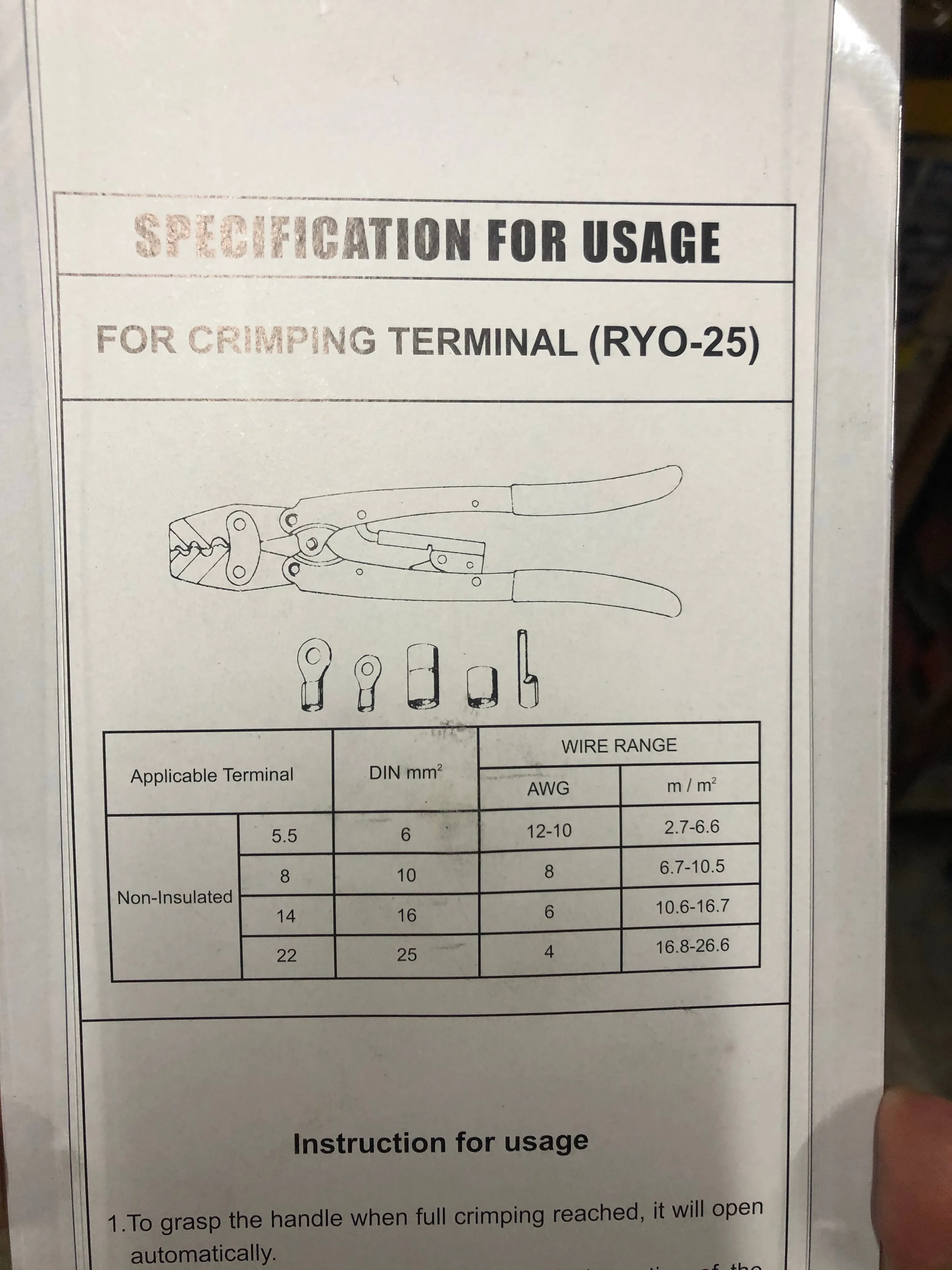

Specifications :
- Non insulated terminal range: 5.5, 8, 14, 22mm2
- Copper tube terminal range: 6, 10,16,25, 25mm2
- Length: 354mm
- Weight: 0.78kg

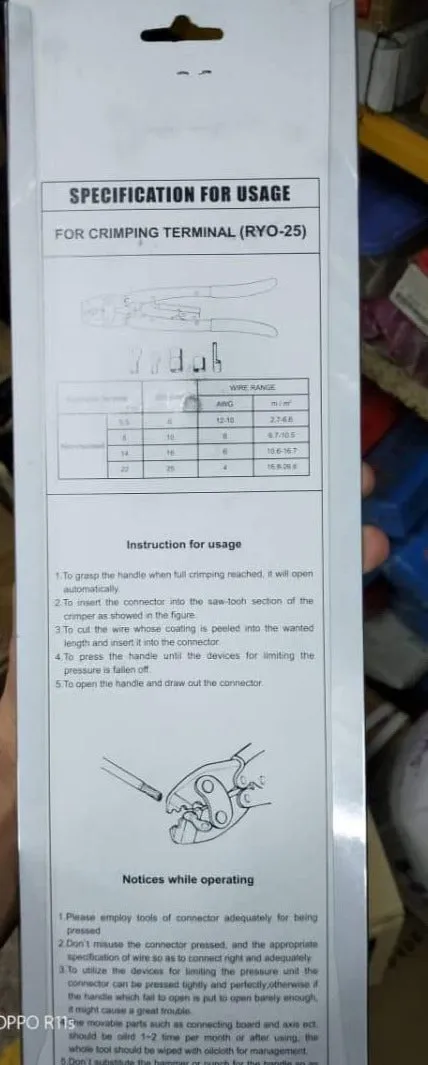

INSTRUCTION FOR USAGE:
- To grasp the handle when full crimping reached , it will open automatically.
- To insert the connector into the saw-tooth section of the crimper as showed in the figure.
- To cut the wire whose coating is peeled into the wanted length and insert it into the connector .
- To press the handle until the devices for limiting the pressure is fallen off.
- To open the handle and draw out the connector
NOTICE WHILE OPERATING:
- Please employ tools OS connector adequately for being pressed.
- Don't misuse the connector pressed, and the appropriate specification of wire so as to connect right and adequately.
- To utilize the devices for limiting the pressure until the connector can be pressed tightly and perfectly ; otherwise if the handle which fail to open is put to open barely enough, it might cause a great trouble.
- The movable parts such as connecting board and axis etc.
should be oiled 1-2 times per month or after using , the whole tool should be wiped with oilcloth for management. - Don't substitute the hammer or punch for the handle so as not to operate it as the additional functioned-tool.
